Why Six to Ten Network Interfaces Matter

Modern network-security platforms often need to communicate with several physically separate network segments simultaneously.

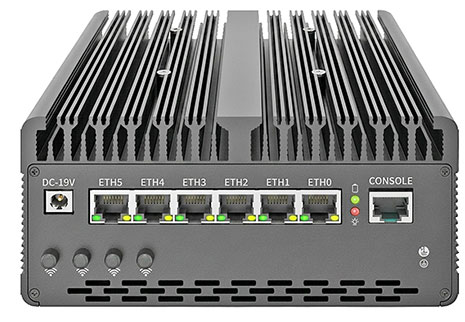

Six standard 2.5GbE interfaces give integrators considerable freedom to allocate physical connections to different network zones, equipment groups, management networks or external links according to the software architecture of the appliance.

For projects requiring even greater interface density or higher network speeds, the Nano-UC14L6 can use its PCIe x8 expansion position for an additional two- or four-port network module. Depending on the selected module, configurations can incorporate 1GbE/SFP, 2.5GbE or 10GbE/SFP+ connectivity.

This means that one compact system can provide as many as ten physical network interfaces, while configurations requiring higher-speed optical or copper links can be adapted to the specific project.

The actual use of these interfaces — for routing, segmentation, traffic inspection, firewalling, VPN connectivity or other functions — is determined by the operating system and application software. The hardware platform provides the physical connectivity and computing resources needed to implement these architectures.

Intel Core Ultra Processing for Modern Security Workloads

Network appliances increasingly perform considerably more processing than simple packet forwarding.

Depending on the software, security systems may need to inspect traffic, encrypt and decrypt communications, process logs, run multiple services or virtualized workloads, analyse network information and support local management functions.

The Nano-UC14L6 therefore moves Polywell's compact multi-LAN offering onto the Intel Core Ultra Series 1 Meteor Lake platform.

Available processors range from the 14-core Intel Core Ultra 5 125H to the 16-core Core Ultra 7 165H and Core Ultra 9 185H, with maximum processor frequencies up to 5.1 GHz depending on the selected CPU.

These processors also integrate Intel® AI Boost NPU acceleration, providing an additional computing resource for compatible local AI inference and AI-assisted processing. Actual use of the NPU depends on the selected software framework and application.

Combined with up to 96 GB of replaceable DDR5 memory, this processing platform gives developers substantially more room for demanding network services, multiple applications and edge workloads than basic low-power gateway architecture.

Flexible Local Storage for Appliance Applications

Storage requirements in modern network appliances are also increasing. Operating systems, application software, security databases, logs, captured data and local analytics can all create demand for fast and flexible storage.

The Nano-UC14L6 provides two M.2 2280 positions for PCIe 4.0 NVMe SSDs, together with a separate 2.5-inch SATA storage position.

This gives integrators the flexibility to separate operating system, application and data storage or simply configure the capacity appropriate to the appliance without relying on external storage devices.

Built for Network Security and Edge Appliance Developers
The Nano-UC14L6 is particularly relevant for OEMs, system integrators and solution developers creating dedicated hardware platforms for applications such as:

• Firewall and unified security appliances
• VPN and secure network gateways
• SD-WAN and branch-network appliances
• Network monitoring and traffic-analysis systems
• Intrusion detection and prevention platforms
• Remote and branch security systems
• Industrial and OT network gateways
• Edge computing and AI-IoT appliances

Strengthening Polywell's Position in Network Security

The Nano-UC14L6v is more than another addition to Polywell's small-form-factor computer range.

It is part of Polywell's broader development of hardware platforms for the network-security market — from compact multi-LAN appliances deployed at the edge to PolyNet high-NIC server platforms designed for larger networking and security infrastructures.

Within this portfolio, the Nano-UC14L6 strengthens the compact appliance layer by combining a modern Intel Core Ultra architecture with six standard 2.5GbE interfaces, optional expansion to as many as ten network interfaces, high-speed NVMe storage and substantial memory capacity.

For customers developing firewalls, gateways, network-monitoring systems and other dedicated appliances, this provides a modern hardware foundation that can be configured around the requirements of the individual project.

As demand for network security, distributed edge protection and specialised network appliances continues to grow, Polywell intends to strengthen its presence in this market with application-focused platforms ranging from compact embedded systems to high-performance network servers.

Discover More

Explore the full specifications and available configurations of the Polywell Nano-UC14L6.

Contact Polywell Computers to discuss your network-security or network-appliance project, select an appropriate configuration or request a project quotation.
